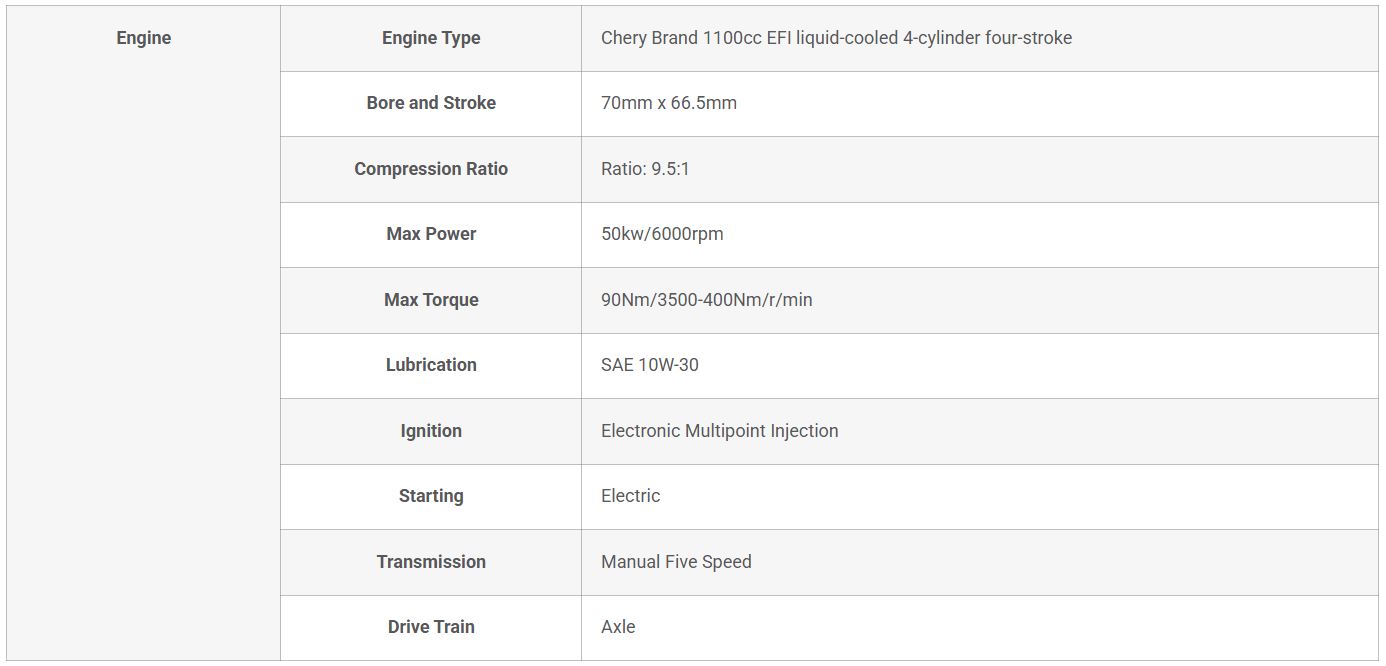

Engine Engine Type Chery Brand 1100cc EFI liquid-cooled 4-cylinder four-stroke
Bore and Stroke 70mm x 66.5mm
Compression Ratio Ratio: 9.5:1
Max Power 50kw/6000rpm
Max Torque 90Nm/3500-400Nm/r/min
Lubrication SAE 10W-30
Ignition Electronic Multipoint Injection
Starting Electric
Transmission Manual Five Speed
Drive Train Axle

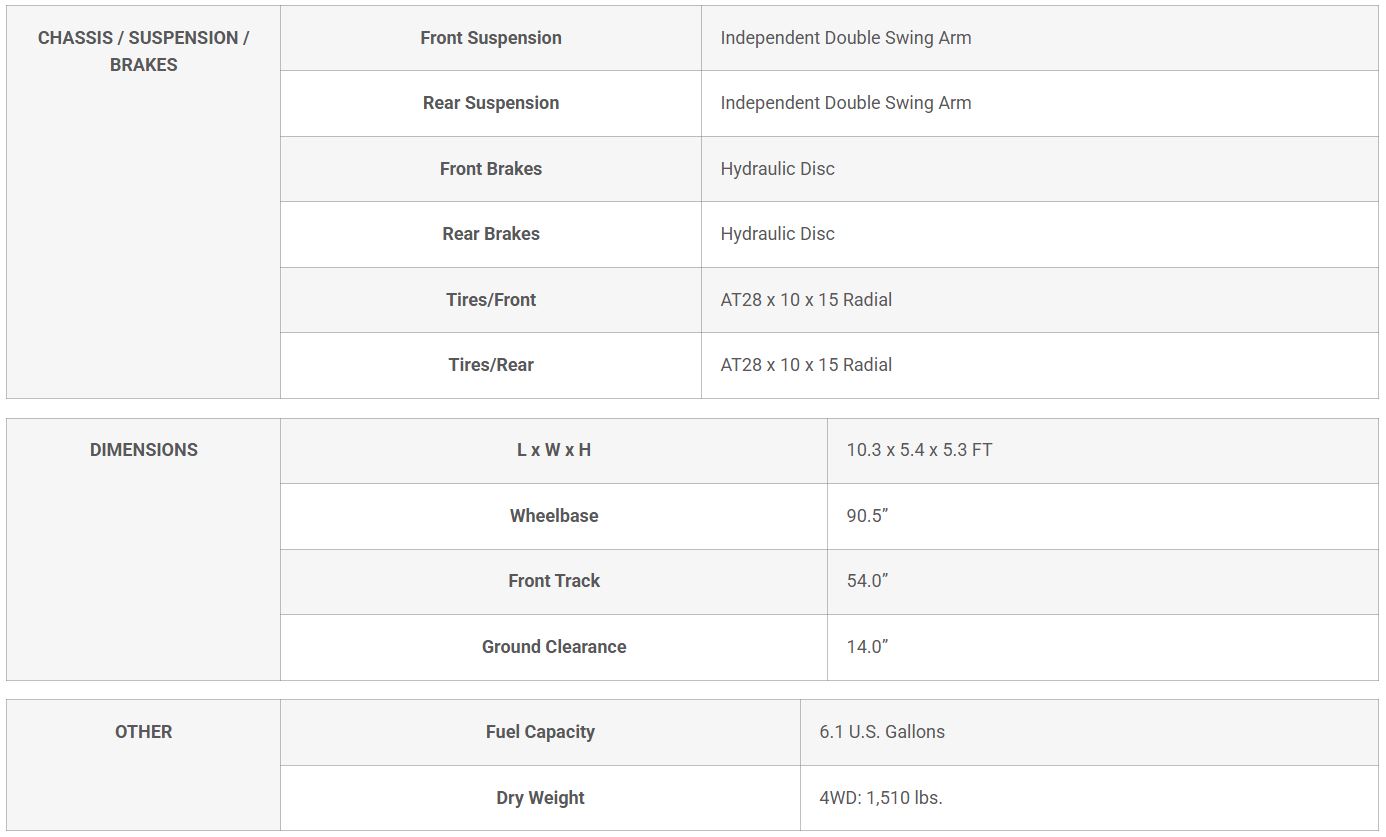

CHASSIS / SUSPENSION / BRAKES Front Suspension Independent Double Swing Arm
Rear Suspension Independent Double Swing Arm
Front Brakes Hydraulic Disc
Rear Brakes Hydraulic Disc
Tires/Front AT28 x 10 x 15 Radial
Tires/Rear AT28 x 10 x 15 Radial

DIMENSIONS L x W x H 10.3 x 5.4 x 5.3 FT
Wheelbase 90.5”
Front Track 54.0”
Ground Clearance 14.0”

OTHER Fuel Capacity 6.1 U.S. Gallons
Dry Weight 4WD: 1,510 lbs.
